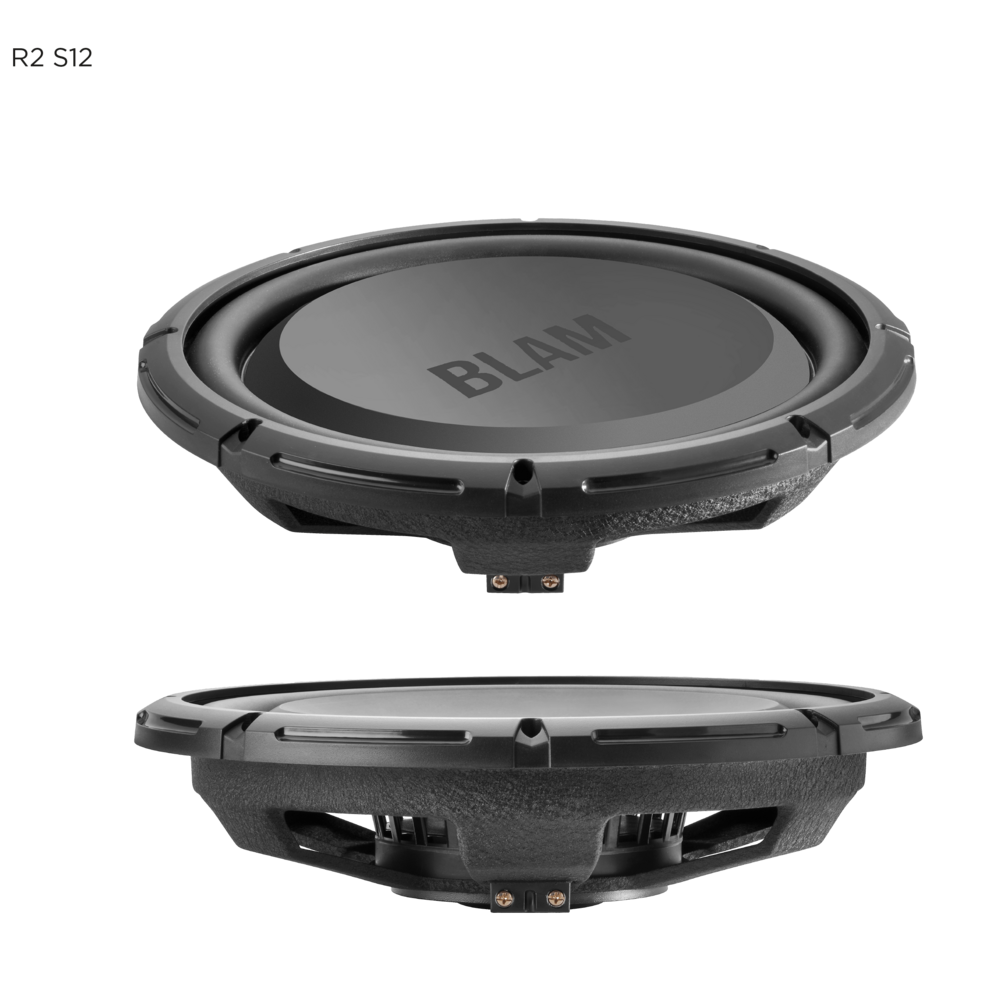

RS12.4
Description
300 mm (12’’) extra-slim subwoofer
300 mm (12”) extra-slim subwoofer
Mounting depth 67 mm (2.6’’)
Maximum power 400 W / Nominal power 200 W
Frequency response: 30 Hz à 500 Hz
Sensitivity 87.5 dB
Impedance 4 Ohms
Composition
Steel basket
Injected polypropylene cone
Butyl rubber surround
Long life “conex” damper
50 mm (2’’) voice coil on aluminium former
126 mm x 15 mm (5’’ x 0.6’’) motor assembly
Extended T yoke
Optimized for use in a 15L to 45L closed enclosure
Supplied Accessories:
Mounting screw
User manual
Recommended sealed enclosure :
Internal Volume Vb F -3dB Boost
15 L 50 Hz 8.1 dB at 77 Hz
25 L 42 Hz 6.5 dB at 65 Hz
40 L 37 Hz 5.4 dB at 57 Hz
