Description

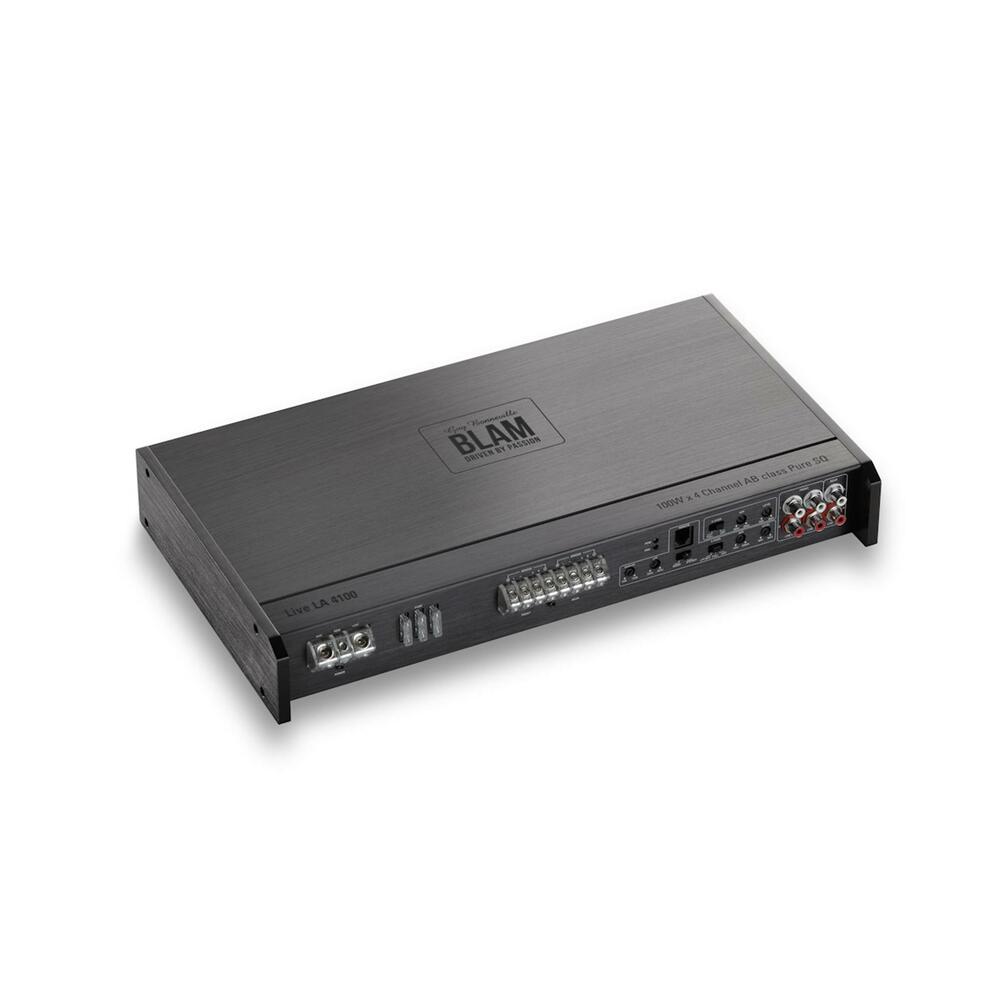

100 W X 4 CHANNEL CLASS AB PURE SQ AMPLIFIER
We developed the LIVE amplifiers by considering every parameter; bringing them to life by measuring and listening to each design concept until they reached our design target.
The result is a huge reserve of power that reproduces every detail of the music. Low frequency information is precisely reproduced with impressive authority. Their large heatsink area keeps the amplifier cool, increasing stability and reliability.
Their robust design is combined with a high-end finish and are available in two colors: black or silver.
Composition
Caractéristics
• RCA low level inputs: 0.5 V
• RMS Power (4 Ω): 4 x 100 W
• RMS Power (2 Ω): 4 x 130 W
• RMS Bridged Power (4 Ω): 2 x 260 W
• Low pass crossover: 50 Hz – 3 kHz (12 dB/octave) (Rear)
• High pass crossover: 50 Hz – 3 kHz (12 dB/octave) (Front), 15 Hz – 500 Hz (12 dB/octave) (Rear)
• Frequency response : 10 Hz – 45 kHz
• Bass boost: 0-10 dB at 45 Hz (Rear)
• Signal/noise ratio > 100 dB
• Remote subwoofer level control: 0-10 dB (Rear)
• Mono/Stereo selector (Rear)
• Protections: short circuit / low impedance /
reversal of polarity / heat protection
• Dimensions (L x W x H): 416 x 217 x 60 mm – 16.3’’ x 8.5’’ x 2.4’’
It is also available in the Black Edition
Remote level control is optional
